Professional, 3D, wireless, point-laser Easy-Laser® XT770 shaft alignment tool

The Easy-Laser® XT770 is the most powerful member of the XT shaft alignment tool generation. Thanks to the 360° Live feature, you have even more advanced adjustment possibilities. The measurement process can be monitored on various devices thanks to the multi-platform solution. Thus, in addition to the system's own industrial water- and shockproof instrument, you can also work with a tablet PC or even your smartphone, whichever suits your habits best. Simply download the XT Alignment app and you will have all the necessary measurement programs at your disposal. There is no expiration, license fee, or multi-user limit. On the state-of-the-art OLED displays of the Easy-Laser® XT70 M/S measuring units, you can track the current angle of the measuring head for easier installation and adjustment, as well as see the battery charge level. The rigid aluminum housing provides maximum stability and ensures long life even in industrial conditions, with IP66 / IP67 protection and outstanding shock resistance. The high-performance battery provides up to 24 hours of continuous operation. The Easy-Laser® XT70 M/S measuring units are equipped with point lasers and single-axis PSD type sensor surfaces. The point laser technology allows for measuring larger machines and more distant points than linear laser systems, due to its laser power focused on a single point. Additionally, it provides greater accuracy when dealing with shaft coupling backlash. Moreover, with a point laser, you can even check the machine base twist and keyway gap during machine installation.

Features of the Easy-Laser® XT770 shaft alignment tool:

• 12 built-in measurement programs with detailed 3D graphics
• Shaft alignment for horizontal and vertical machines
• Position-independent measurement based on just 2 x 20° rotation
• Continuous (live) 3D correction motion display
• Recognition of soft foot with graphical display
• Measurement averaging for measurements in vibrating environments
• Thermal expansion correction for "cold" machine alignment
• Display/warning of adjustment tolerances
• Dual point laser and PSD sensor for precise measurements
• Wireless Bluetooth® connection with measuring heads
• Uninterrupted measurement with EndurioTM technology
• IP 66 and IP 67 industrial protection
• Comprehensive measurement and reporting application
• Manual in Hungarian (and English)

The Easy-Laser® XT770 can be a modern maintenance tool in the long run. Its operation is ergonomic and easy to learn. The Endurio™ power management technology ensures the least possible energy consumption and uninterrupted measurement process, allowing measurements to continue quickly and without data loss even with drained batteries. Its capabilities can be enhanced with numerous accessories, and its built-in program can be easily updated via USB memory.

Easy-Laser® XT770 laser shaft alignment tool - Built-in alignment programs:

	Continuous measurement: Automatic recording of measurement values while rotating the shaft continuously. Hundreds of points are registered during this process. You can start from any angle to anywhere, ensuring the quality of the measurement.
	Multi-Point measurement: Multi-point is essentially the same as EasyTurnTM, but it can fix more positions within the rotational range. This provides an optimal basis for calculations. Perfect for turbines and sliding bearing machines, for example.
	EasyTurnTM: The EasyTurnTM function allows you to start the measurement process from anywhere on the shaft. You can rotate the shaft to any of the three positions, needing to rotate at least 20° between each position to register the measurement values. This three-point method is an easier-to-use version.
	Three-point method (9-12-3): The measurement points must be fixed in the 9-12-3 o'clock directions. This is the classic three-point method, which can be used in most cases.
	Swapping: the arbitrary interchangeability of stable and movable machine units on the screen to match the position of the machine in front of you, facilitating the understanding of adjustment directions.
	Soft foot: checking the correct leveling of horizontal machines, recognizing "three-footedness."
	Vertical / angular machine: adjustment of the axes and couplings of vertical and angular machines.
	Multi-foot adjustment: measurement/adjustment of machines standing on multiple feet.
	Machine group adjustment: measurement/adjustment of a group of machines (machine line).
	Belt alignment: adjustment of belt and chain drives' pulleys.
	Twist: checking the flatness or twist of the machine's foundation.
	Tolerance check: checking compliance with alignment tolerance values corresponding to the machine's speed category, and displaying them numerically and graphically.
	Thermal expansion compensation: for machines set cold, this function eliminates the adjustment error caused by thermal expansion in the operating warm state.
	Value filter: ensures reliable measurement results even under poor measurement conditions (turbulence, vibrations).
	Value: list display of fixed values of the laser target points. Can be used as a measuring gauge, for example, to detect bearing clearances and shaft deflections.

Package contents:

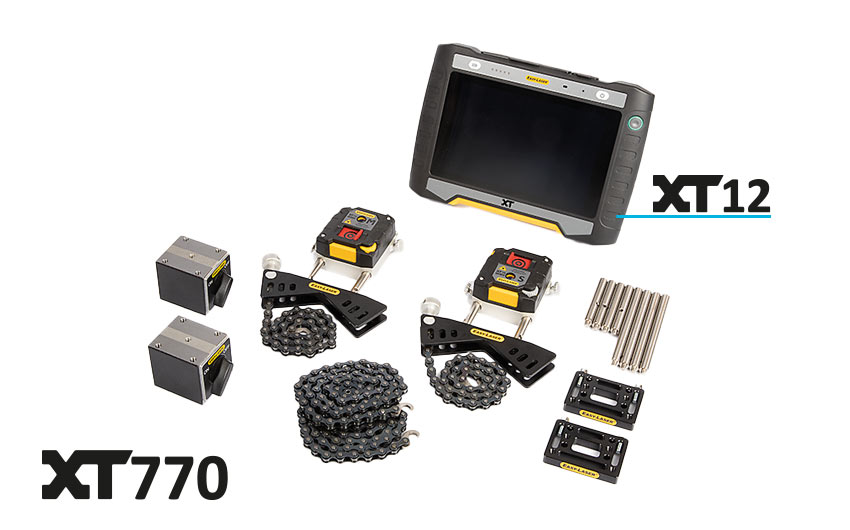

• 1 pc Easy-Laser® XT11 display unit
• 1+1 pc XT70 M / S measuring head with Bluetooth communication
• 2 pcs shaft brackets with chains
• 4 pcs 60 mm rods
• 1 pc measuring tape (3 m)
• 1 pc USB memory stick
• 1 pc adapter (240 V AC) with cable

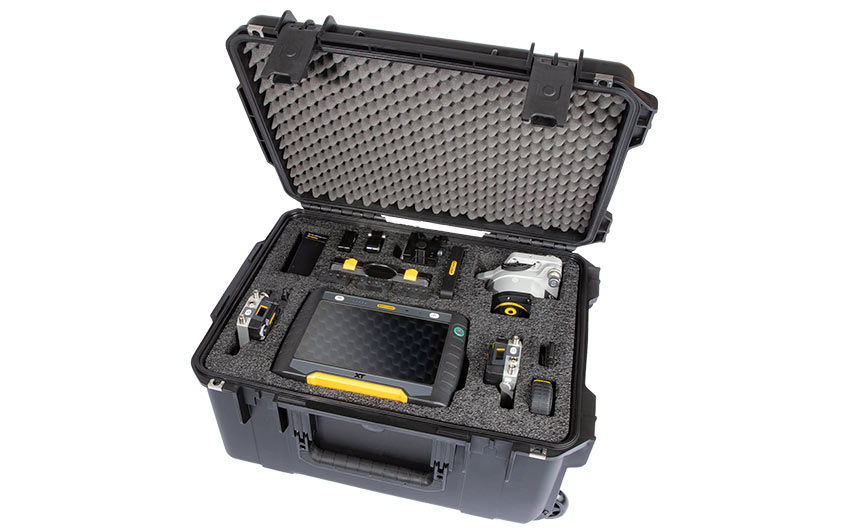

• 1 pc rugged carrying case
• 1 pc user manual (Hungarian)
• 1 pc Easy-Laser® XT Alignment application
• 1 pc English and Hungarian language manual
